안녕하세요~ totally 개발자입니다.



Material 3 Design



보통 플러터 앱 개발을 하실 때 로직 부분을 개발하는데에도 시간이 많이 소요되지만 디자인적인 측면에서도 시간이 많이 소요되는 것을 느끼실 것입니다. 그 때 구글의 머터리얼 (Material) 3의 디자인을 적용하면 디자인적으로 통일성과 자연스러움을 간단하게 적용할 수 있습니다. 사용을 위해서는 당연히 플러터는 업그레이드가 되어 있어야 합니다.



상세한 내용을 아래를 통해 가이드를 확인할 수 있습니다.

https://m3.material.io/



Material Design

Build beautiful, usable products faster. Material Design is an adaptable system—backed by open-source code—that helps teams build high quality digital experiences.

m3.material.io



간단한 실습을 통해 Material 3 디자인을 적용해보도록 하겠습니다.

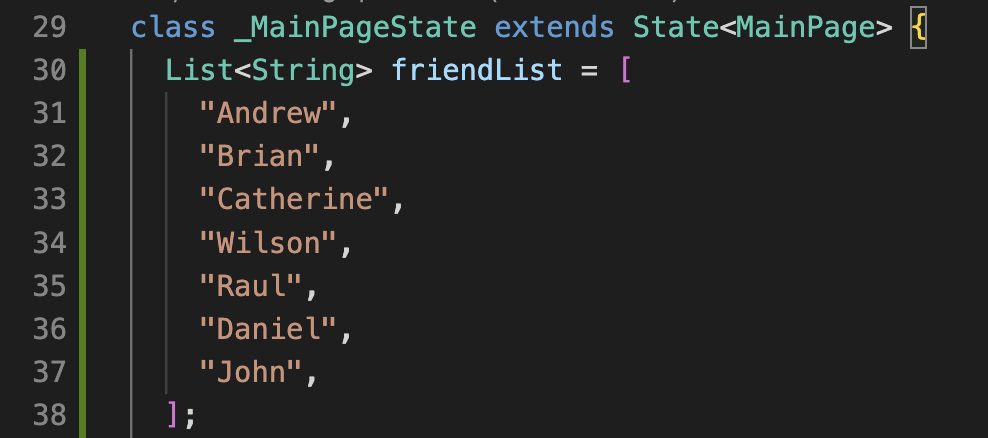

Step 1: 디자인 적용에 앞서 카드 리스트가 구현된 페이지를 만들어보겠습니다. 먼저 클래스 내에 다음처럼 간단한 String 리스트를 선언합니다. (전체 코드는 맨 아래에 첨부하였습니다)

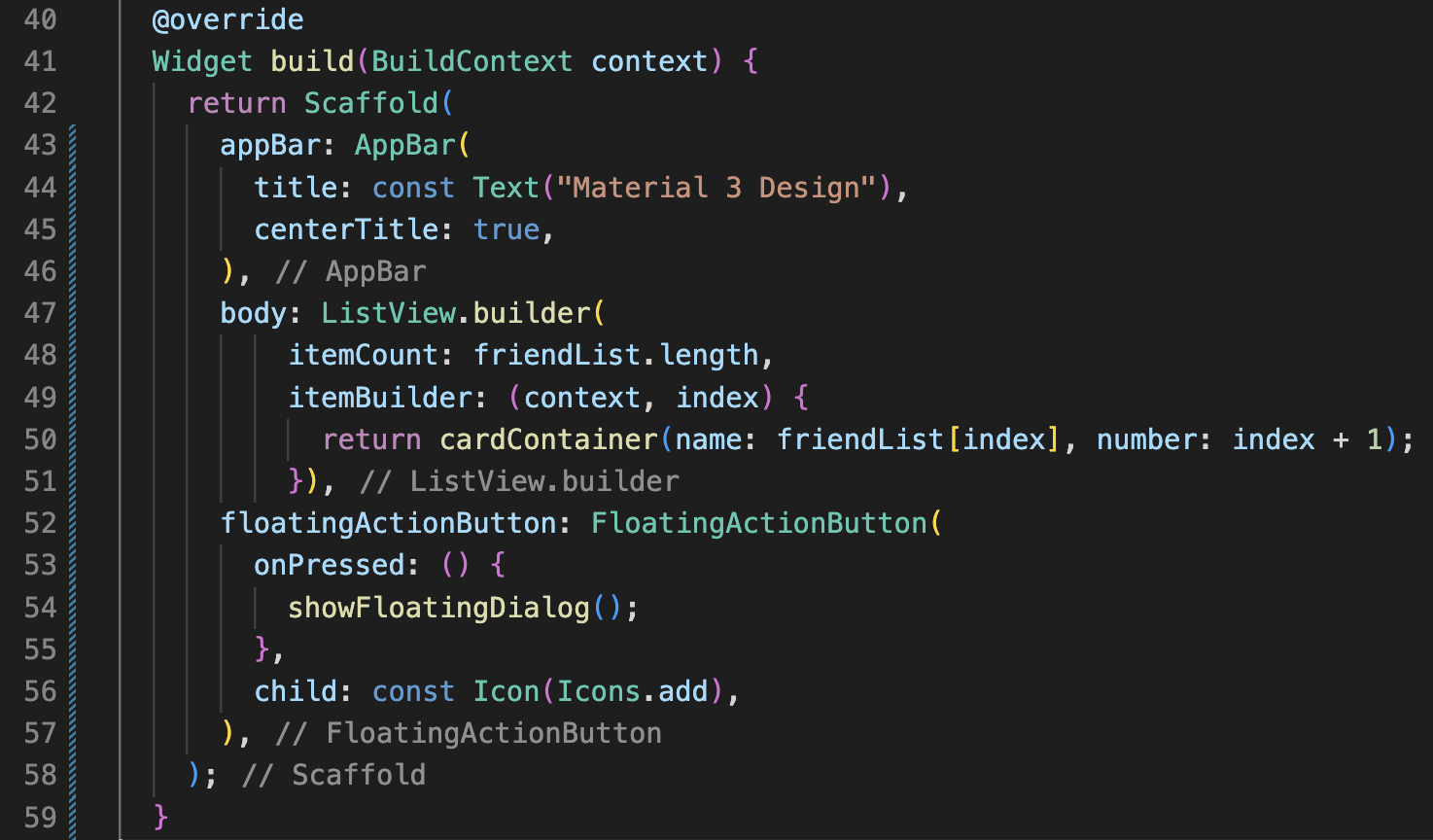

Step 2: 다음처럼 Scaffold 뼈대를 만들고 appBar, body, floatingActionButton 부분을 구성하고 body에는 ListView.builder를 통해서 리스트를 보여주도록 하겠습니다.

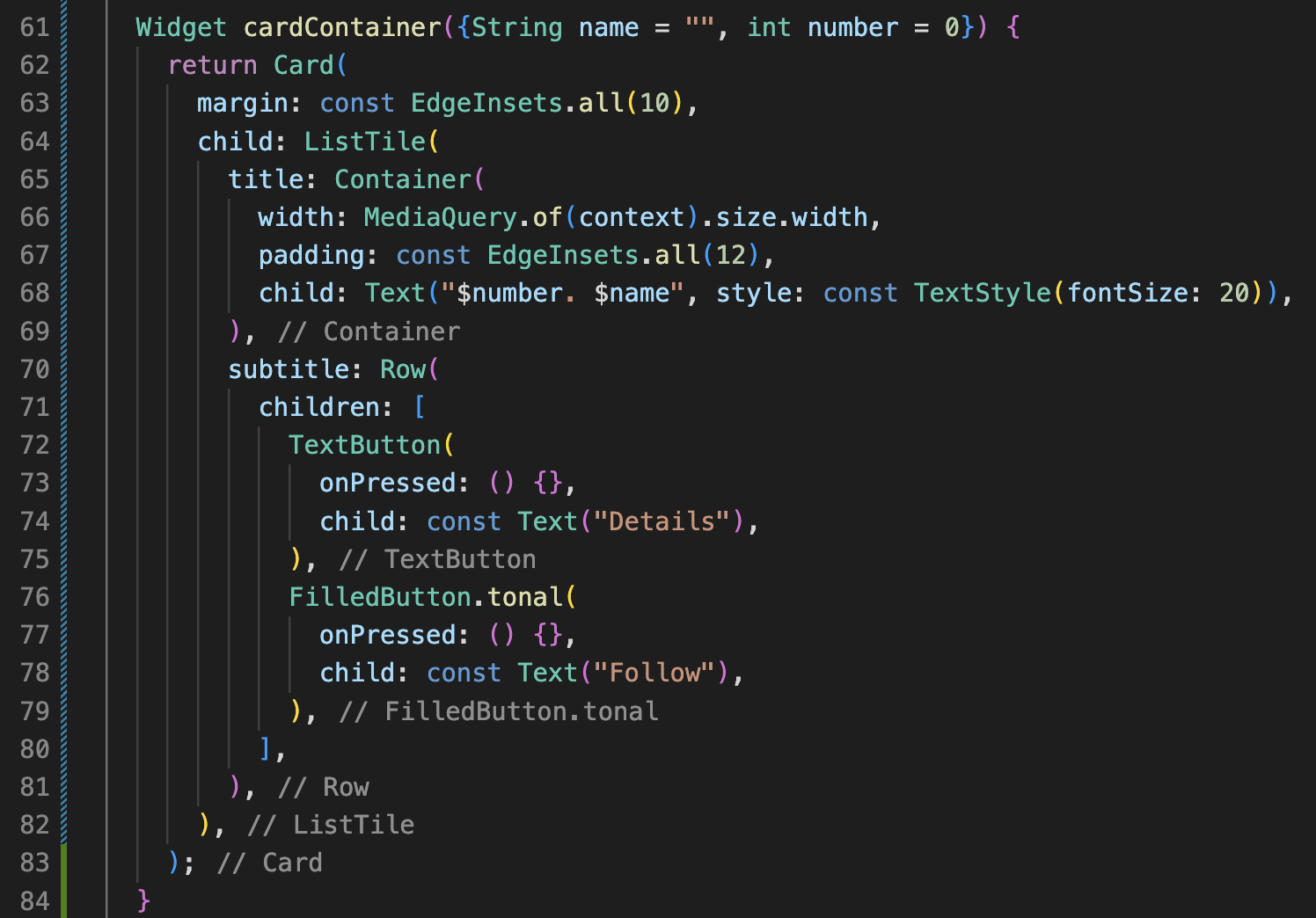

Step 3: cardContainer에 들어갈 위젯을 만들어줍니다. 참고로 추후에 디자인 적용을 위해 색상은 넣지 않습니다. FilledButton를 사용하면 버튼 배경에 색상을 적용할 수 있으며 tonal를 사용하시면 FilledButton과 OutlinedButton의 중간단계처럼 활용할 수 있습니다. 즉 색이 옅어집니다.

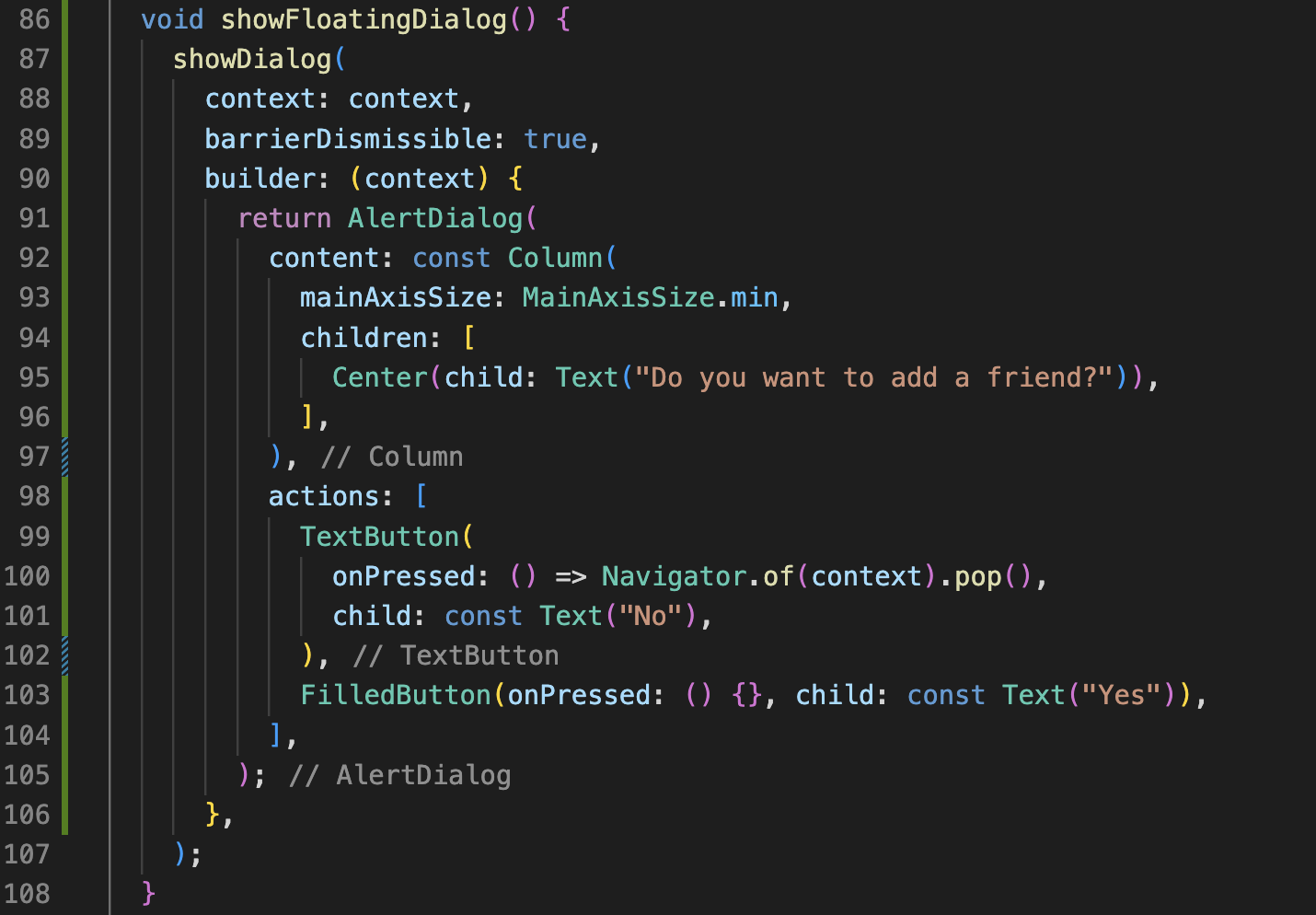

Step 4: FloatingActionButton(+ 버튼)을 클릭했을 때 팝업창(Dialog)을 만들어줍니다.

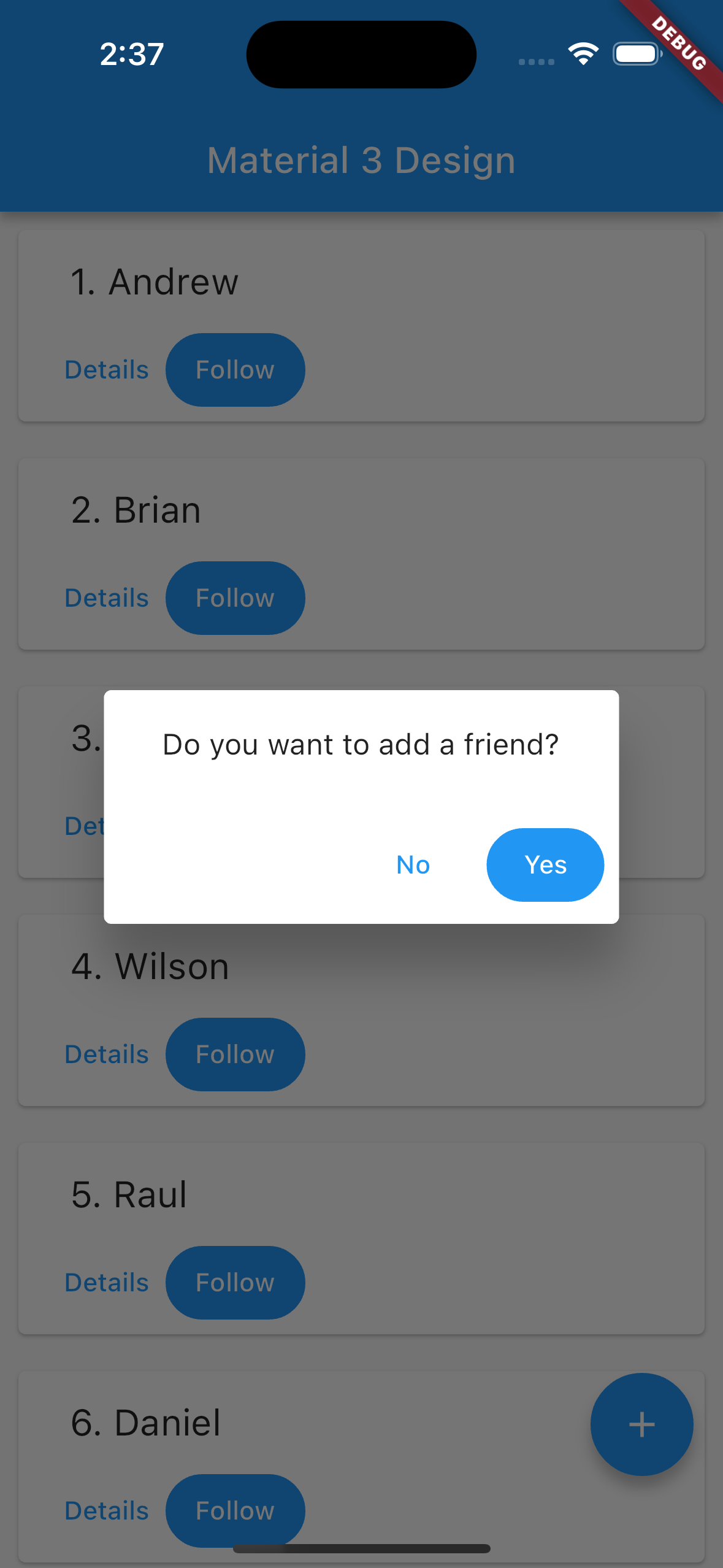

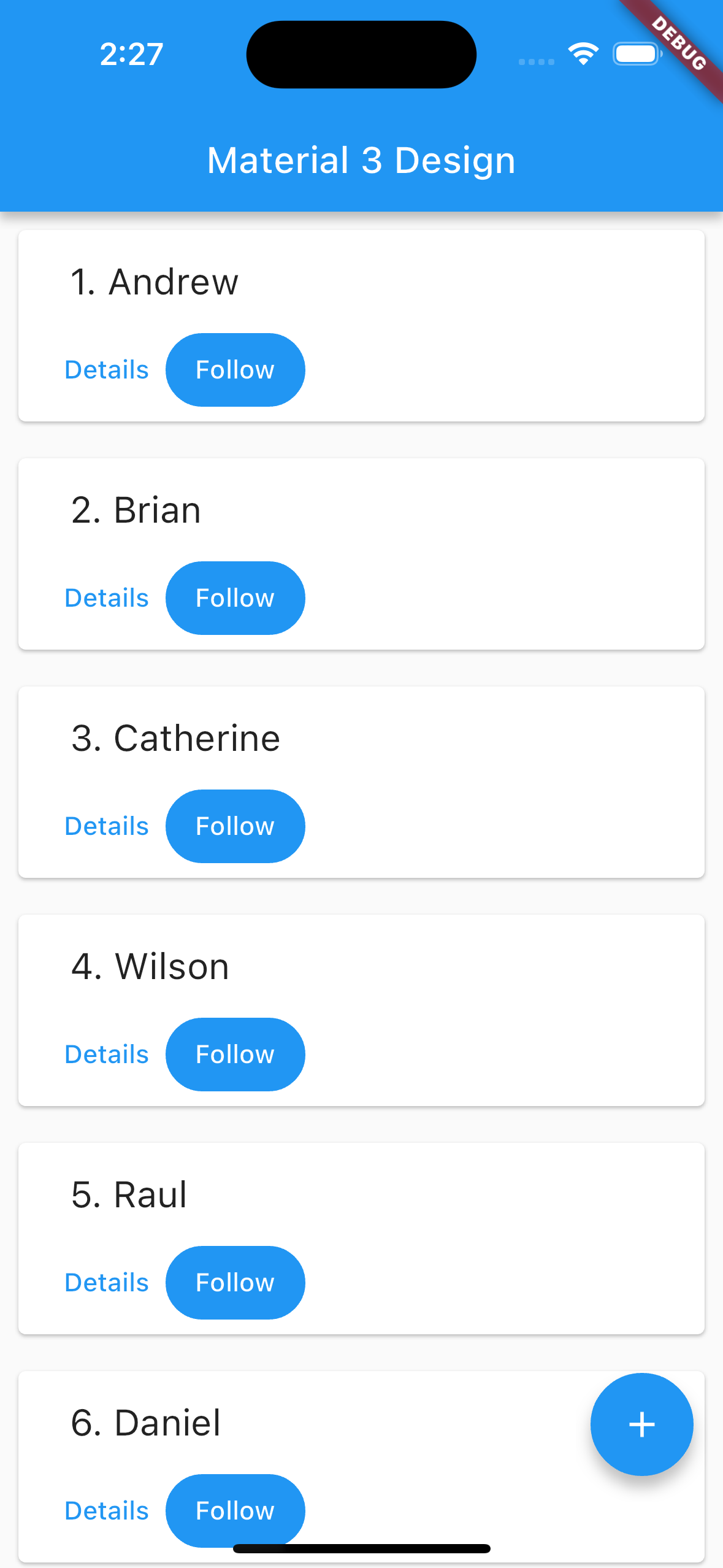

Step 5: 실행해서 테스틀해봅니다.







여기서 확인해보시면 아시겠지만 기본적으로 적용되는 색상으로만 앱 디자인을 마무리하기에는 한계가 있습니다. 그래서 여기에 직접 Material 3 디자인을 적용하고 비교해보도록 하겠습니다.



먼저 아래 웹사이트를 통해서 어떤 색상이 있고 어떻게 보여지는지 알 수 있습니다.

https://flutter.github.io/samples/web/material_3_demo/



material_3_demo



flutter.github.io



기본적으로 indigo, blue, teal, green, yellow, orange, deepOrange, pink 중에 선택해서 사용하시면 됩니다.

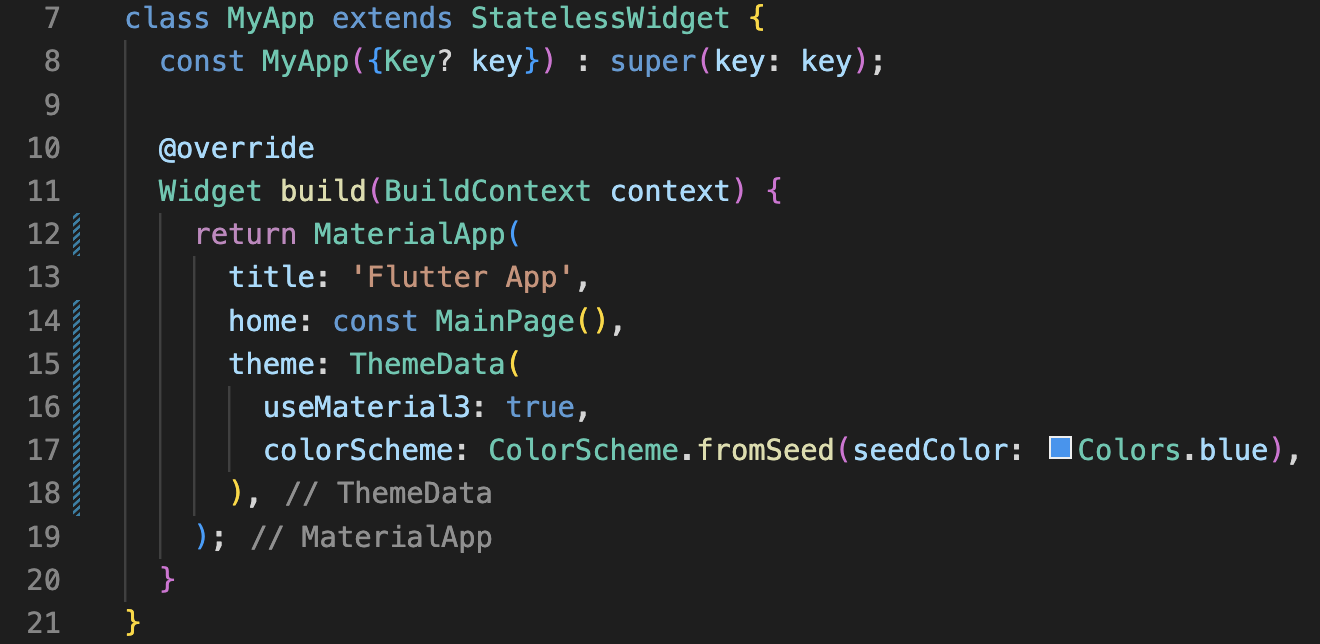

Step 6: MaterialApp쪽에서 15-17번째 줄처럼 ThemeData를 넣어주고 useMaterial3을 true로 변경해주시면 되며 colorScheme.fromSeed를 넣어주면 됩니다.

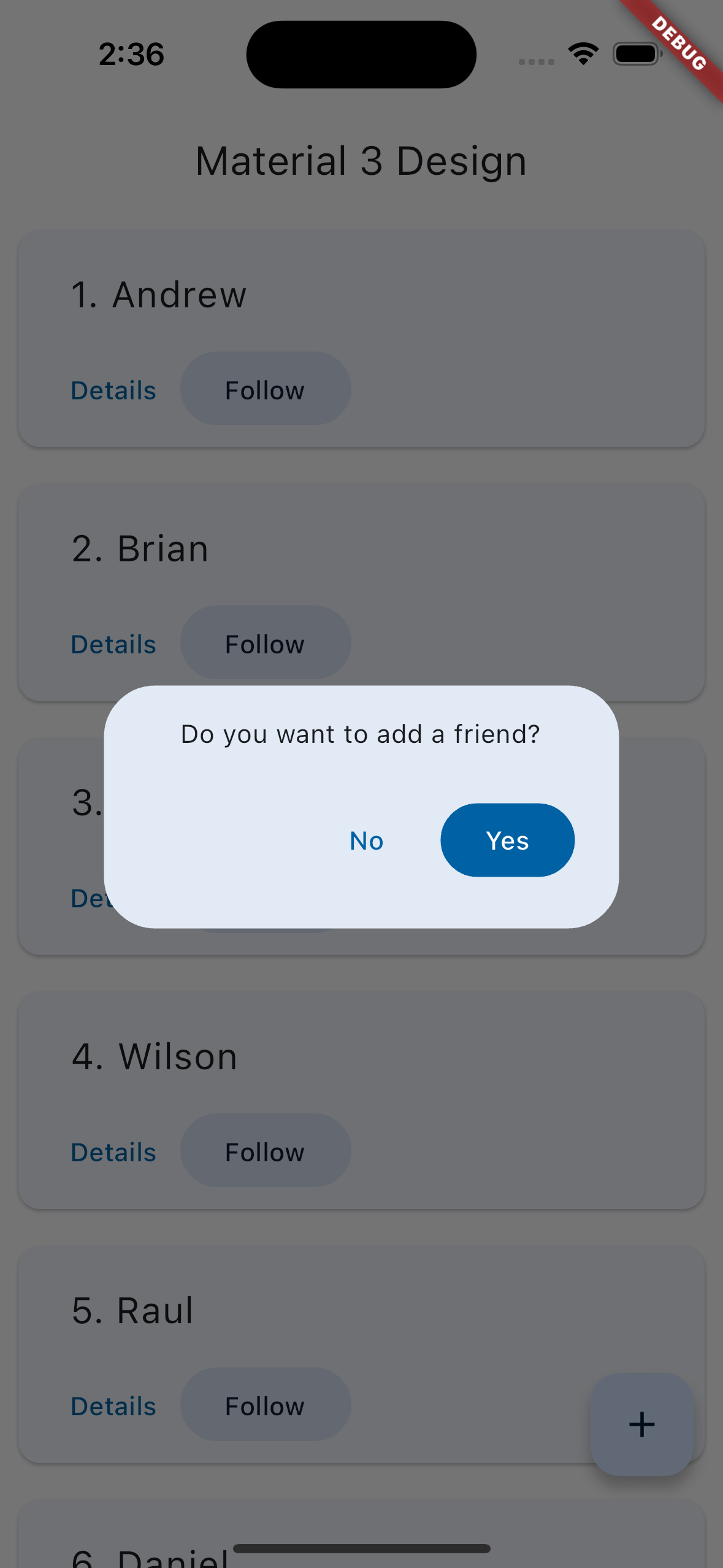

Step 7: 저장하고 다시 확인해보시면 아래와 같습니다.



왼쪽이 적용전, 오른쪽이 적용 후 인데 직접 보셔서 비교해보시면 아시겠지만 확실히 다른 것을 알 수 있습니다.

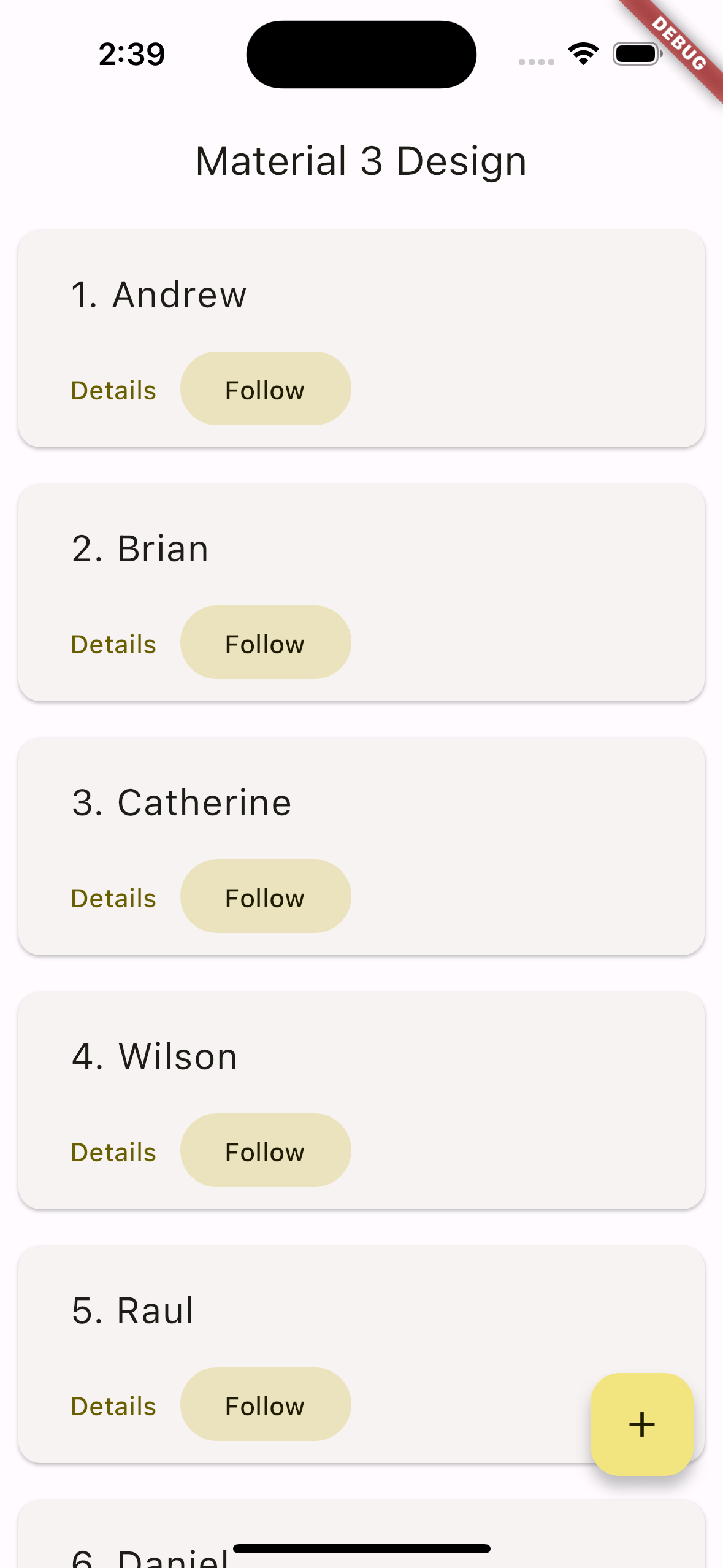

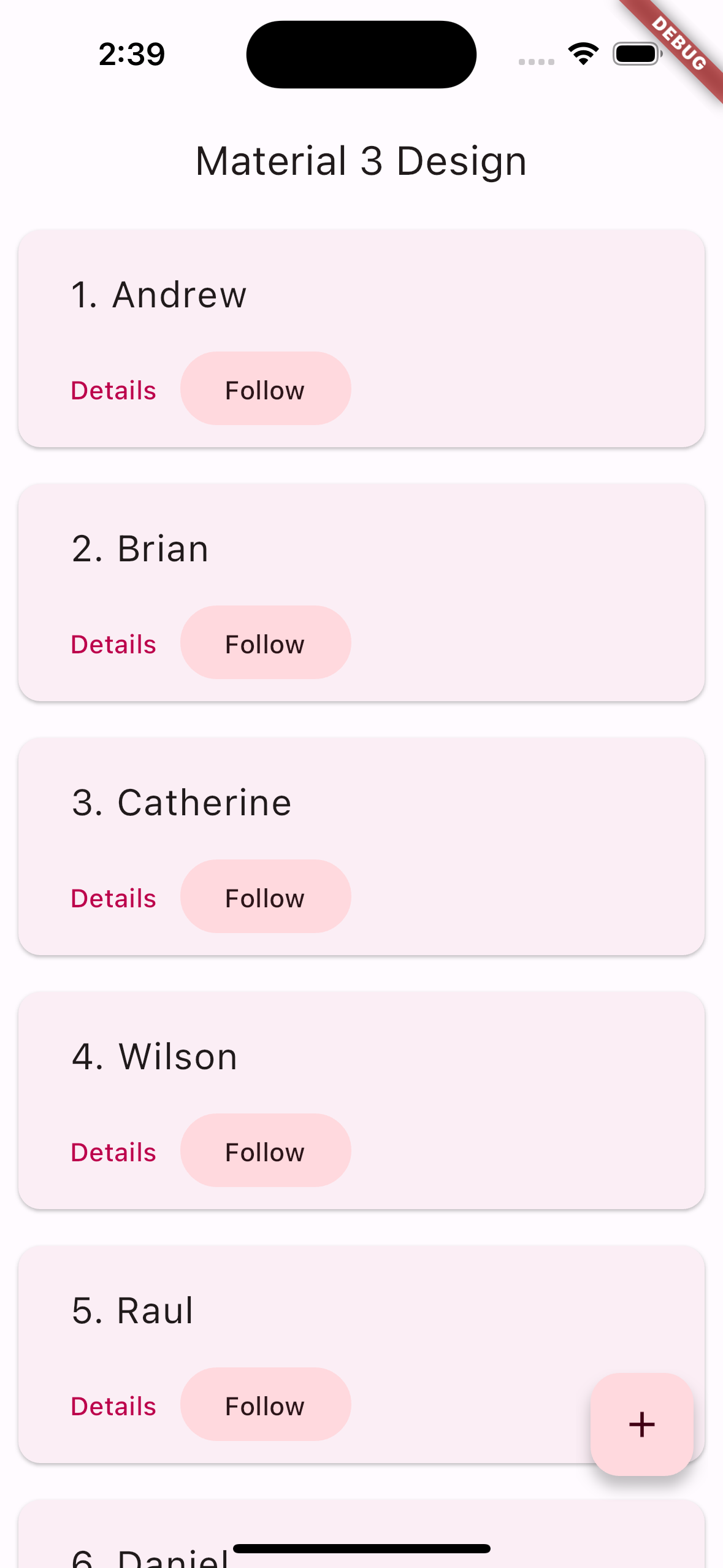

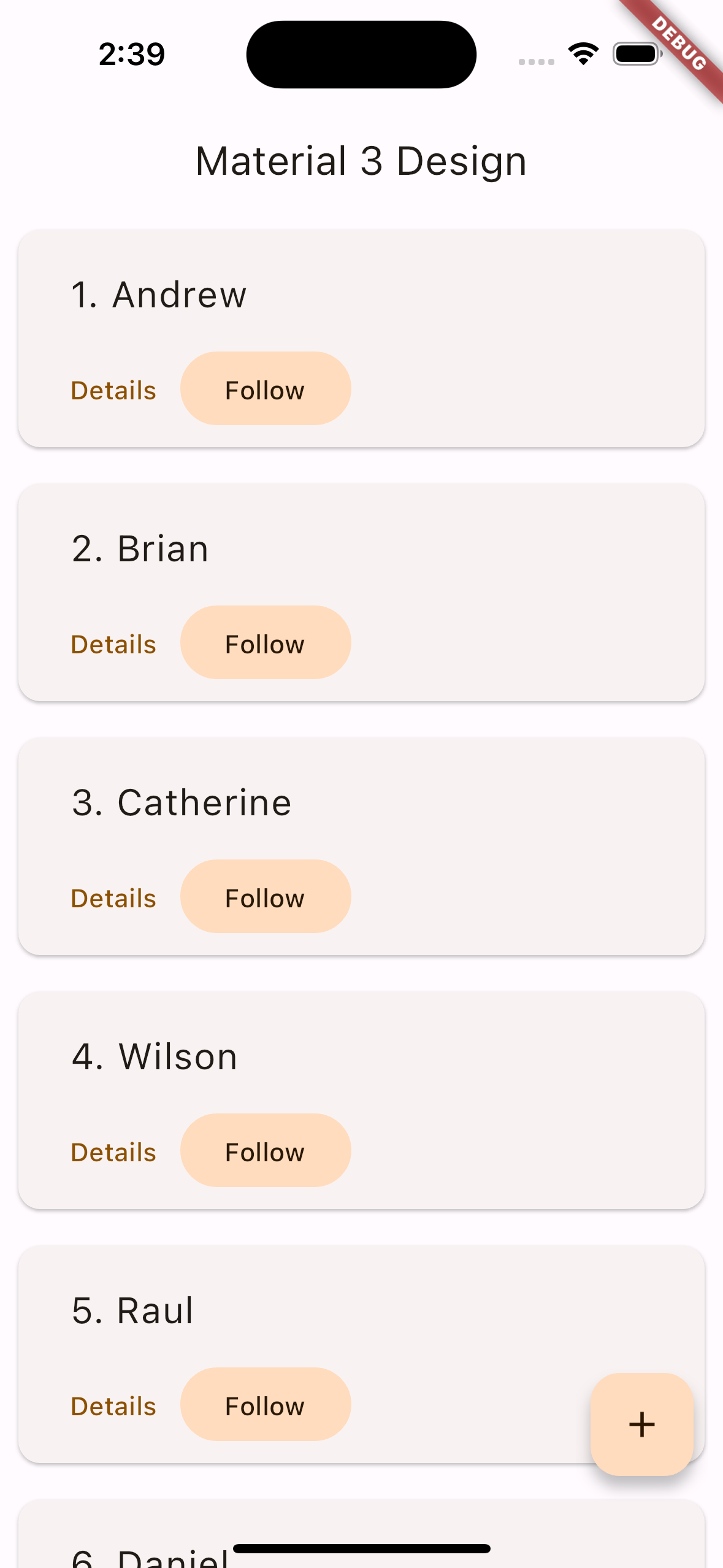

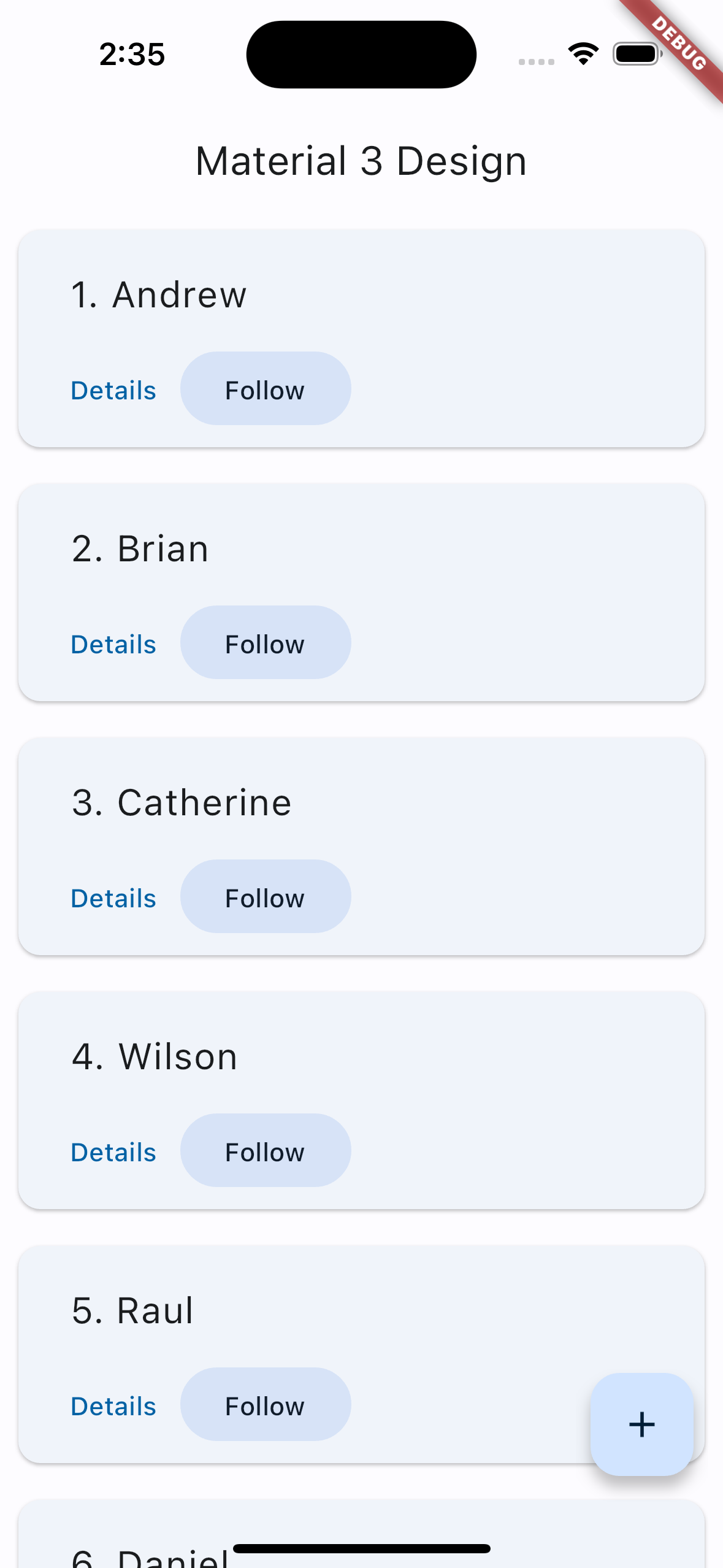

몇 가지 추가적으로 색상을 적용해본 모습입니다.



green yellow orange pink



어려운 세팅 없이, 앱이 깔끔하고 고급스러워진 것을 알 수 있습니다. 특히 소규모로 개발하시는 개발자 분들은 디자인 측면에서 시간을 많이 단축할 수 있을 것으로 생각합니다.



[전체 소스 코드]



import 'package:flutter/material.dart';
void main() {
runApp(const MyApp());
}
class MyApp extends StatelessWidget {
const MyApp({Key? key}) : super(key: key);
@override
Widget build(BuildContext context) {
return MaterialApp(
title: 'Flutter App',
home: const MainPage(),
theme: ThemeData(
useMaterial3: true,
colorScheme: ColorScheme.fromSeed(seedColor: Colors.pink),
),
);
}
}
class MainPage extends StatefulWidget {
const MainPage({Key? key}) : super(key: key);
@override
State<MainPage> createState() => _MainPageState();
}
class _MainPageState extends State<MainPage> {
List<String> friendList = [
"Andrew",
"Brian",
"Catherine",
"Wilson",
"Raul",
"Daniel",
"John",
];
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
title: const Text("Material 3 Design"),
centerTitle: true,
),
body: ListView.builder(
itemCount: friendList.length,
itemBuilder: (context, index) {
return cardContainer(name: friendList[index], number: index + 1);
}),
floatingActionButton: FloatingActionButton(
onPressed: () {
showFloatingDialog();
},
child: const Icon(Icons.add),
),
);
}
Widget cardContainer({String name = "", int number = 0}) {
return Card(
margin: const EdgeInsets.all(10),
child: ListTile(
title: Container(
width: MediaQuery.of(context).size.width,
padding: const EdgeInsets.all(12),
child: Text("$number. $name", style: const TextStyle(fontSize: 20)),
),
subtitle: Row(
children: [
TextButton(
onPressed: () {},
child: const Text("Details"),
),
FilledButton.tonal(
onPressed: () {},
child: const Text("Follow"),
),
],
),
),
);
}
void showFloatingDialog() {
showDialog(
context: context,
barrierDismissible: true,
builder: (context) {
return AlertDialog(
content: const Column(
mainAxisSize: MainAxisSize.min,
children: [
Center(child: Text("Do you want to add a friend?")),
],
),
actions: [
TextButton(
onPressed: () => Navigator.of(context).pop(),
child: const Text("No"),
),
FilledButton(onPressed: () {}, child: const Text("Yes")),
],
);
},
);
}
}
view raw 070_main.dart hosted with ❤ by GitHub



[유튜브 강좌 영상]



https://youtu.be/KEvAbwJnmC0
