[065] 플러터 (Flutter) 배우기 - 다른 앱에서 공유한 파일, URL 받아오기 (receive_sharing_intent 사용)

안녕하세요~ totally 개발자입니다.



receive_sharing_intent

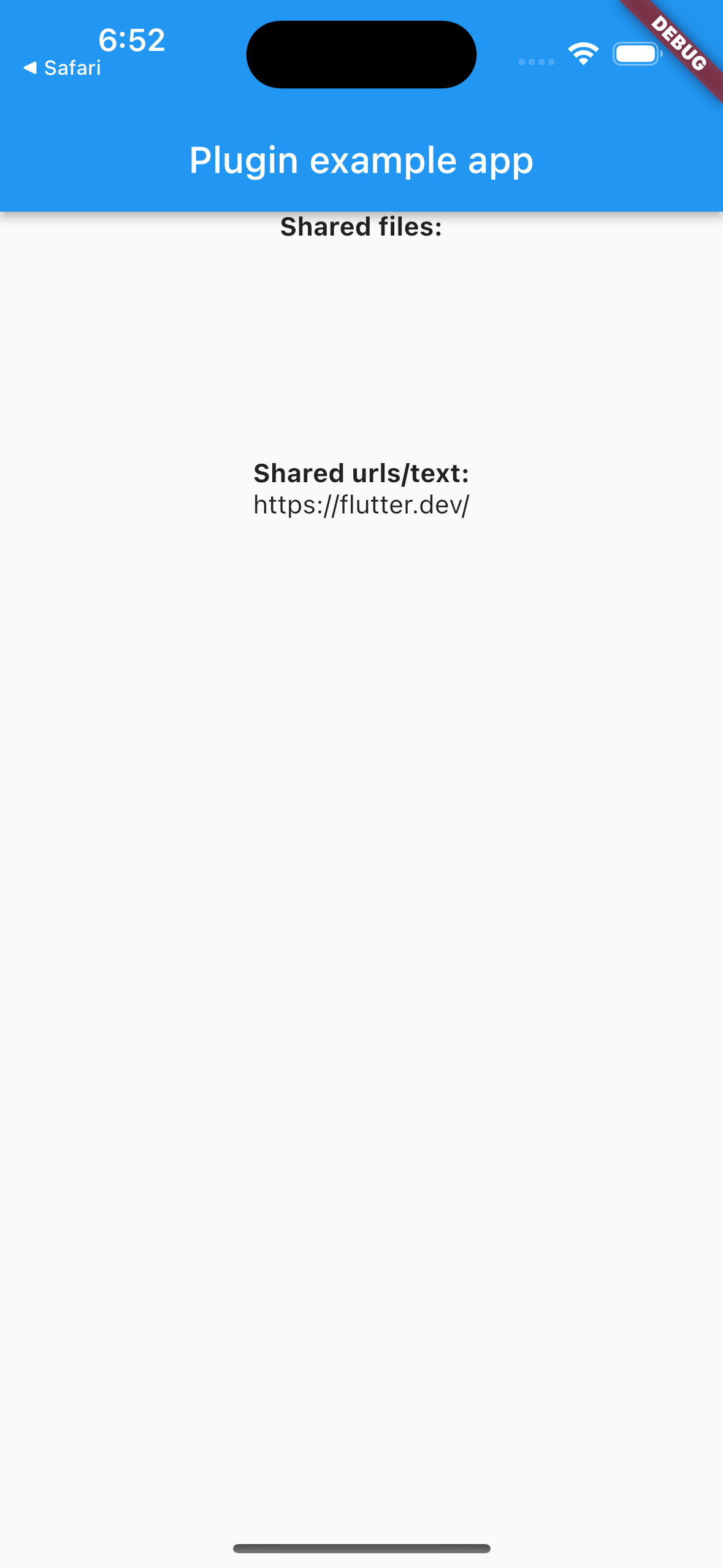

다른 앱 및 웹에서 파일 및 URL를 가져오는 경우에 receive_sharing_intent 패키지를 사용하여 구현할 수 있습니다.

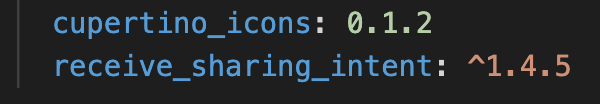

Step 1: pubspec.yaml에 receive_sharing_intent 패키지를 추가합니다. 현재 기준으로 최신 버전은 1.4.5입니다.



Step 2: 안드로이드는 AndroidManifest.xml로 ios는 info.plist로 가셔서 아래 해당 부분을 넣어줍니다.

[안드로이드]

<manifest xmlns:android="http://schemas.android.com/apk/res/android"
.....
 <uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE"/>

  <application
        android:name="io.flutter.app.FlutterApplication"
        ...
        >

    <activity
            android:name=".MainActivity"
            android:launchMode="singleTop"
            android:theme="@style/LaunchTheme"
            android:configChanges="orientation|keyboardHidden|keyboard|screenSize|locale|layoutDirection|fontScale|screenLayout|density|uiMode"
            android:hardwareAccelerated="true"
            android:windowSoftInputMode="adjustResize">

            <intent-filter>
               <action android:name="android.intent.action.VIEW" />
               <category android:name="android.intent.category.DEFAULT" />
               <category android:name="android.intent.category.BROWSABLE" />
               <!--TODO:  Add this filter, if you want support opening urls into your app-->
               <data
                   android:scheme="https"
                   android:host="example.com"
                   android:pathPrefix="/invite"/>
            </intent-filter>

             <!--TODO: Add this filter, if you want to support sharing text into your app-->
            <intent-filter>
               <action android:name="android.intent.action.SEND" />
               <category android:name="android.intent.category.DEFAULT" />
               <data android:mimeType="text/*" />
            </intent-filter>

            <!--TODO: Add this filter, if you want to support sharing images into your app-->
            <intent-filter>
                <action android:name="android.intent.action.SEND" />
                <category android:name="android.intent.category.DEFAULT" />
                <data android:mimeType="image/*" />
            </intent-filter>

            <intent-filter>
                <action android:name="android.intent.action.SEND_MULTIPLE" />
                <category android:name="android.intent.category.DEFAULT" />
                <data android:mimeType="image/*" />
            </intent-filter>

             <!--TODO: Add this filter, if you want to support sharing videos into your app-->
            <intent-filter>
                <action android:name="android.intent.action.SEND" />
                <category android:name="android.intent.category.DEFAULT" />
                <data android:mimeType="video/*" />
            </intent-filter>
            <intent-filter>
                <action android:name="android.intent.action.SEND_MULTIPLE" />
                <category android:name="android.intent.category.DEFAULT" />
                <data android:mimeType="video/*" />
            </intent-filter>

            <!--TODO: Add this filter, if you want to support sharing any type of files-->
            <intent-filter>
                <action android:name="android.intent.action.SEND" />
                <category android:name="android.intent.category.DEFAULT" />
                <data android:mimeType="*/*" />
            </intent-filter>
            <intent-filter>
                <action android:name="android.intent.action.SEND_MULTIPLE" />
                <category android:name="android.intent.category.DEFAULT" />
                <data android:mimeType="*/*" />
            </intent-filter>
      </activity>

  </application>
</manifest>

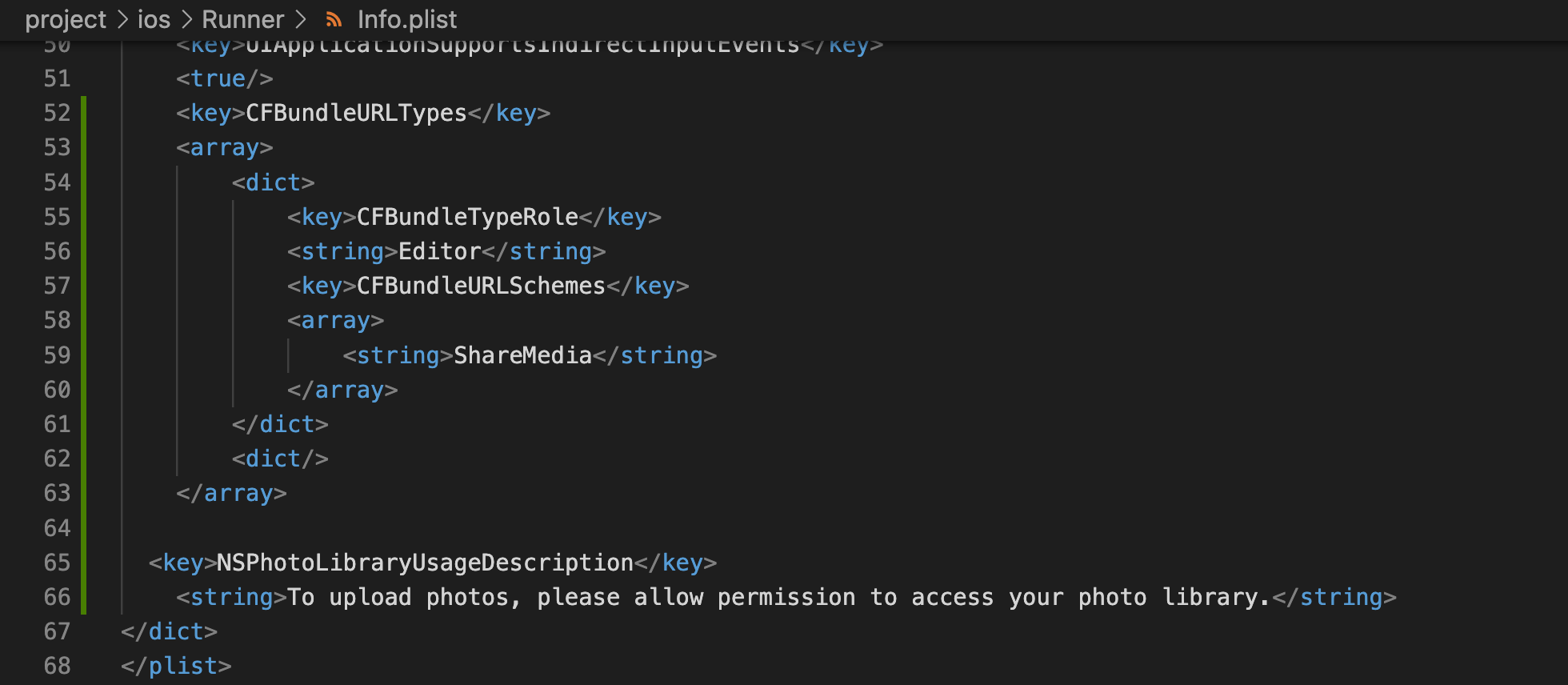

[ios]

...
<key>CFBundleURLTypes</key>
	<array>
		<dict>
			<key>CFBundleTypeRole</key>
			<string>Editor</string>
			<key>CFBundleURLSchemes</key>
			<array>
				<string>ShareMedia</string>
			</array>
		</dict>
		<dict/>
	</array>

  <key>NSPhotoLibraryUsageDescription</key>
	<string>To upload photos, please allow permission to access your photo library.</string>
...





그리고 안드로이드의 경우에는 바로 아래에 코드를 MainActivity.kt에 넣어주시면 됩니다.

import android.os.Bundle
import io.flutter.embedding.android.FlutterActivity
import android.content.Intent.FLAG_ACTIVITY_NEW_TASK

class MainActivity: FlutterActivity() {
    override fun onCreate(savedInstanceState: Bundle?) {

       ・・・

        if (intent.getIntExtra("org.chromium.chrome.extra.TASK_ID", -1) == this.taskId) {
            this.finish()
            intent.addFlags(FLAG_ACTIVITY_NEW_TASK);
            startActivity(intent);
        }
        super.onCreate(savedInstanceState)
    }
}

r

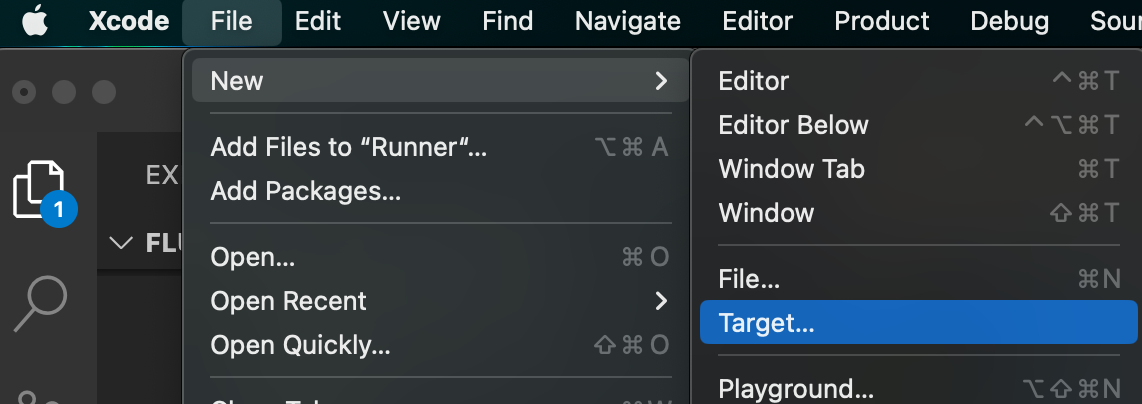

Step 3: XCode를 열어줍니다. VSCode 등 에디터의 터미널에서 open ios/Runner.xcworkspace로도 열 수 있습니다. 그 후 File -> New -> Target을 선택합니다. (안드로이드 구현하시는 분은 Step 9로 가셔서 진행하시면 됩니다.)

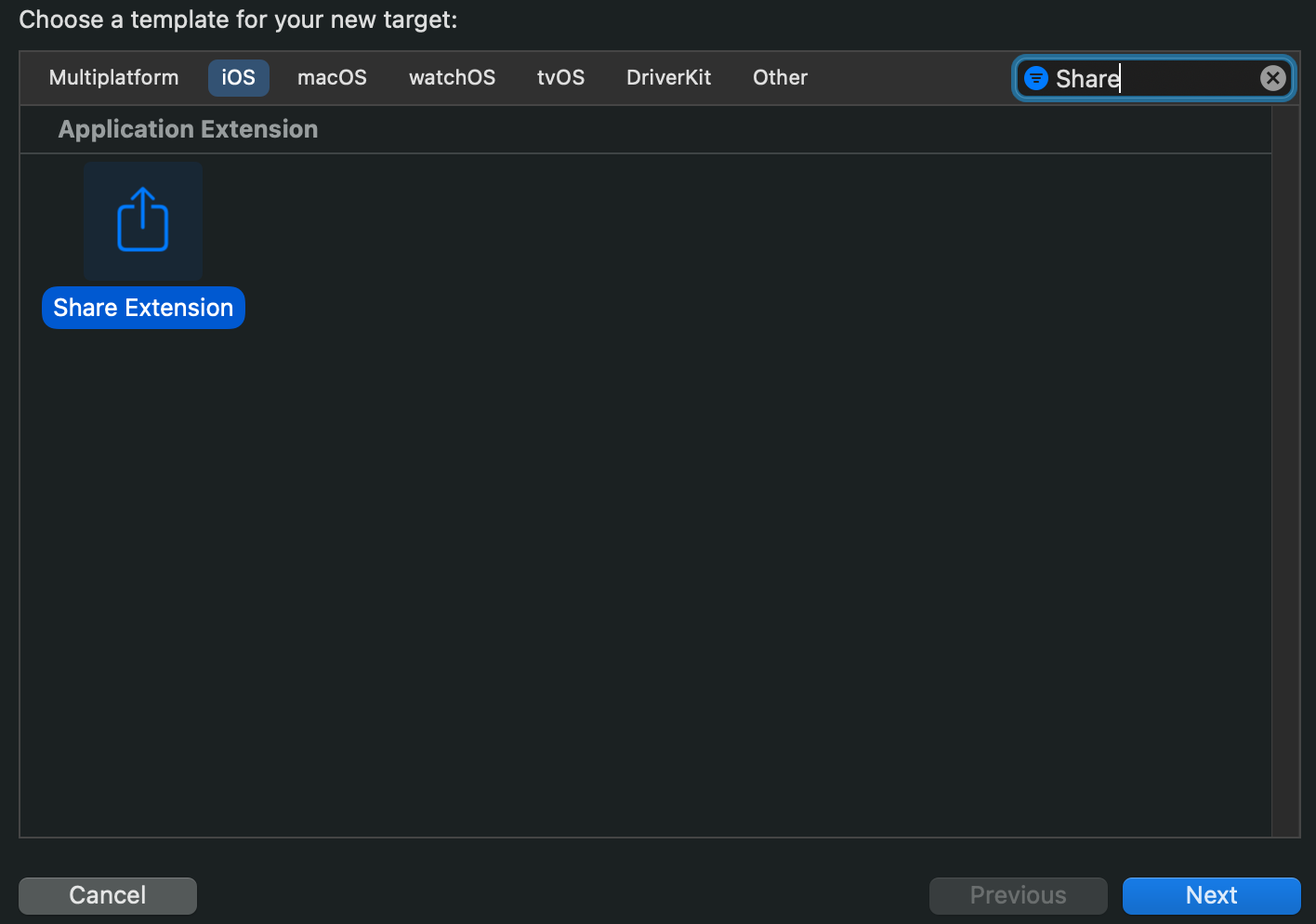

Step 4: Share Extension을 선택하신 뒤 Next를 클릭합니다. 그 후 product name은 Share Extension으로 입력 후, team 선택 후 넘어가시면 됩니다.

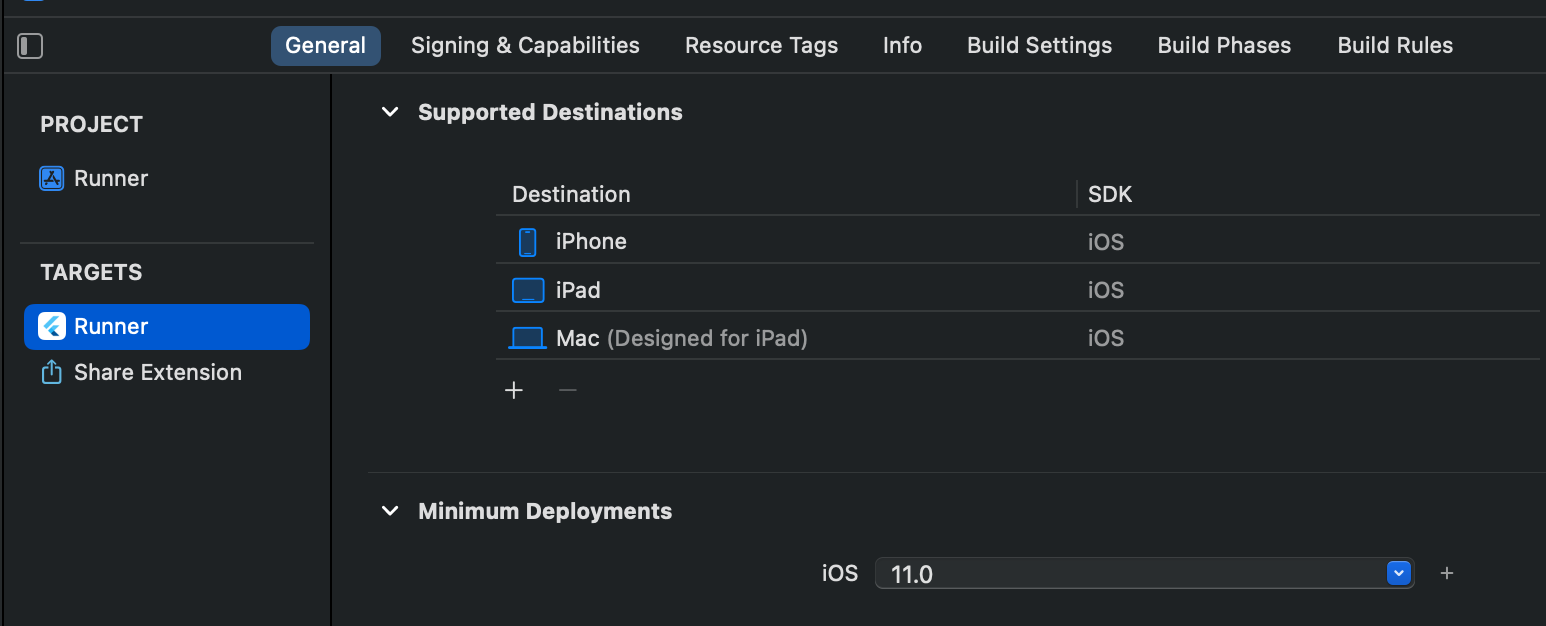

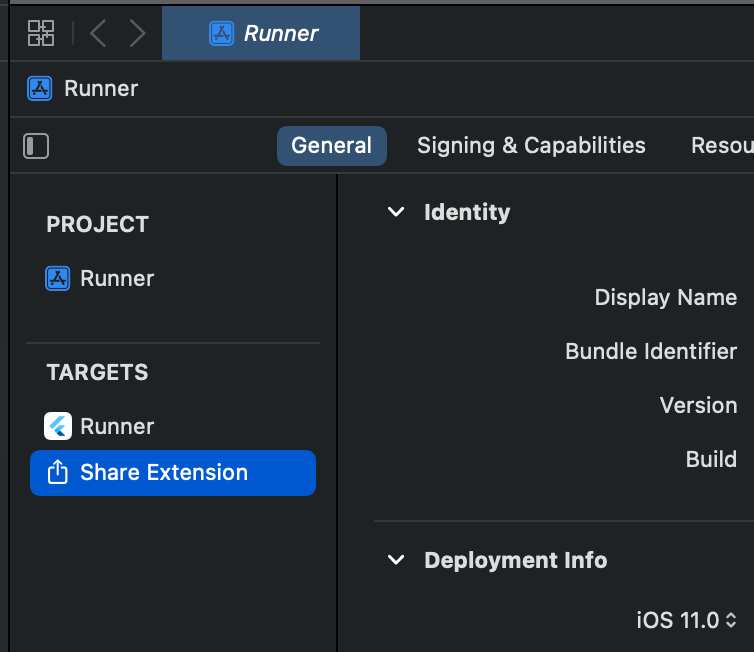

Step 5: Runner와 Share Extensiond의 Deployment target 버전을 일치시켜 줍니다.

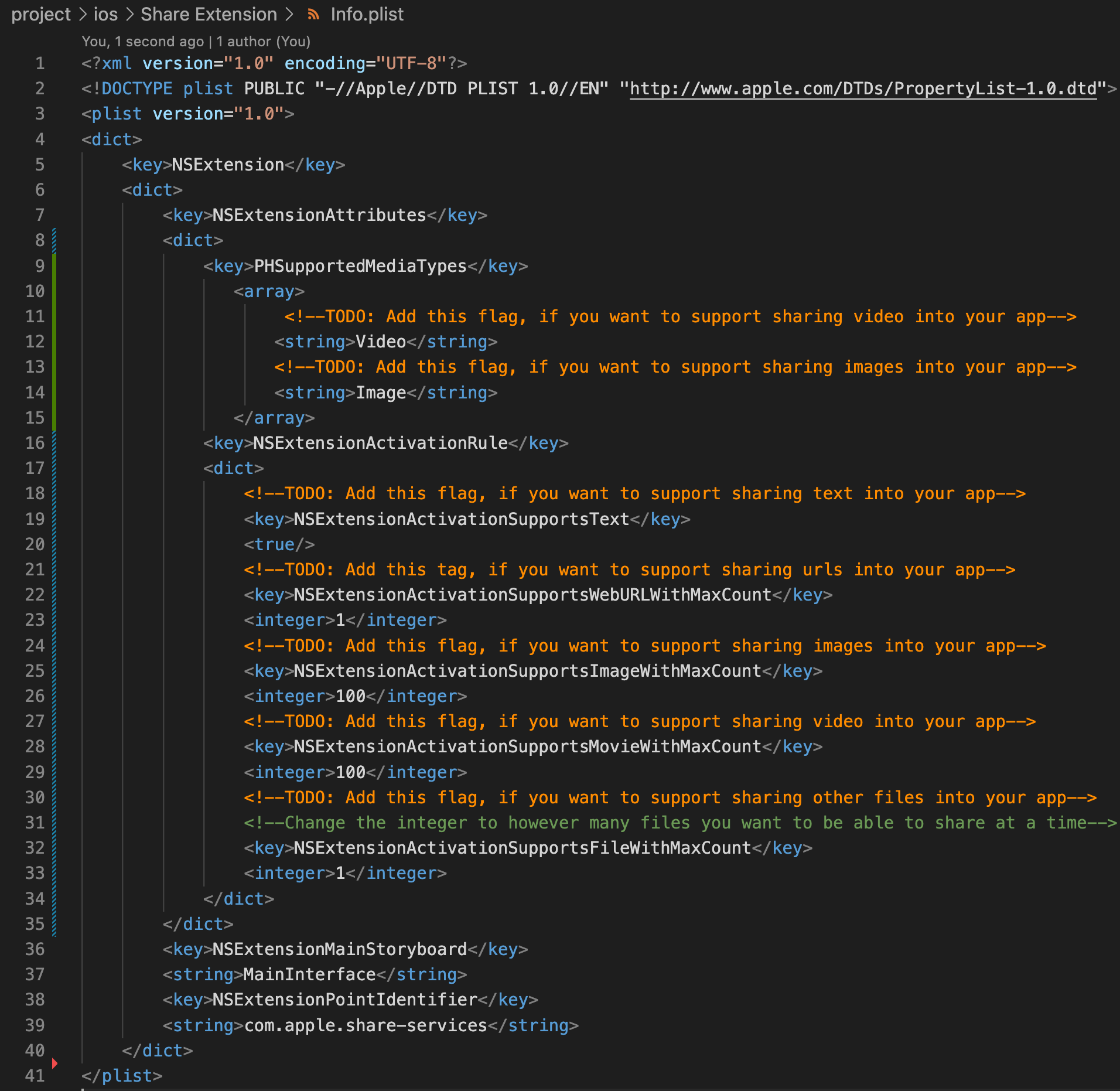

Step 6: Share Extension 경로에 있는 info.plist에 다음 내용을 추가합니다.

<key>NSExtension</key>
	<dict>
		<key>NSExtensionAttributes</key>
        <dict>
            <key>PHSupportedMediaTypes</key>
               <array>
                    <!--TODO: Add this flag, if you want to support sharing video into your app-->
                   <string>Video</string>
                   <!--TODO: Add this flag, if you want to support sharing images into your app-->
                   <string>Image</string>
               </array>
            <key>NSExtensionActivationRule</key>
            <dict>
                <!--TODO: Add this flag, if you want to support sharing text into your app-->
                <key>NSExtensionActivationSupportsText</key>
                <true/>
                <!--TODO: Add this tag, if you want to support sharing urls into your app-->
            	<key>NSExtensionActivationSupportsWebURLWithMaxCount</key>
            	<integer>1</integer>
            	<!--TODO: Add this flag, if you want to support sharing images into your app-->
                <key>NSExtensionActivationSupportsImageWithMaxCount</key>
                <integer>100</integer>
                <!--TODO: Add this flag, if you want to support sharing video into your app-->
                <key>NSExtensionActivationSupportsMovieWithMaxCount</key>
                <integer>100</integer>
                <!--TODO: Add this flag, if you want to support sharing other files into your app-->
                <!--Change the integer to however many files you want to be able to share at a time-->
				<key>NSExtensionActivationSupportsFileWithMaxCount</key>
				<integer>1</integer>
            </dict>
        </dict>
		<key>NSExtensionMainStoryboard</key>
		<string>MainInterface</string>
		<key>NSExtensionPointIdentifier</key>
		<string>com.apple.share-services</string>
	</dict>



혹시 <dict> 짝이 안 맞는 경우 여기에서 </dict>를 40번째 줄과 41번째 줄 사이에 넣어주시면 됩니다.

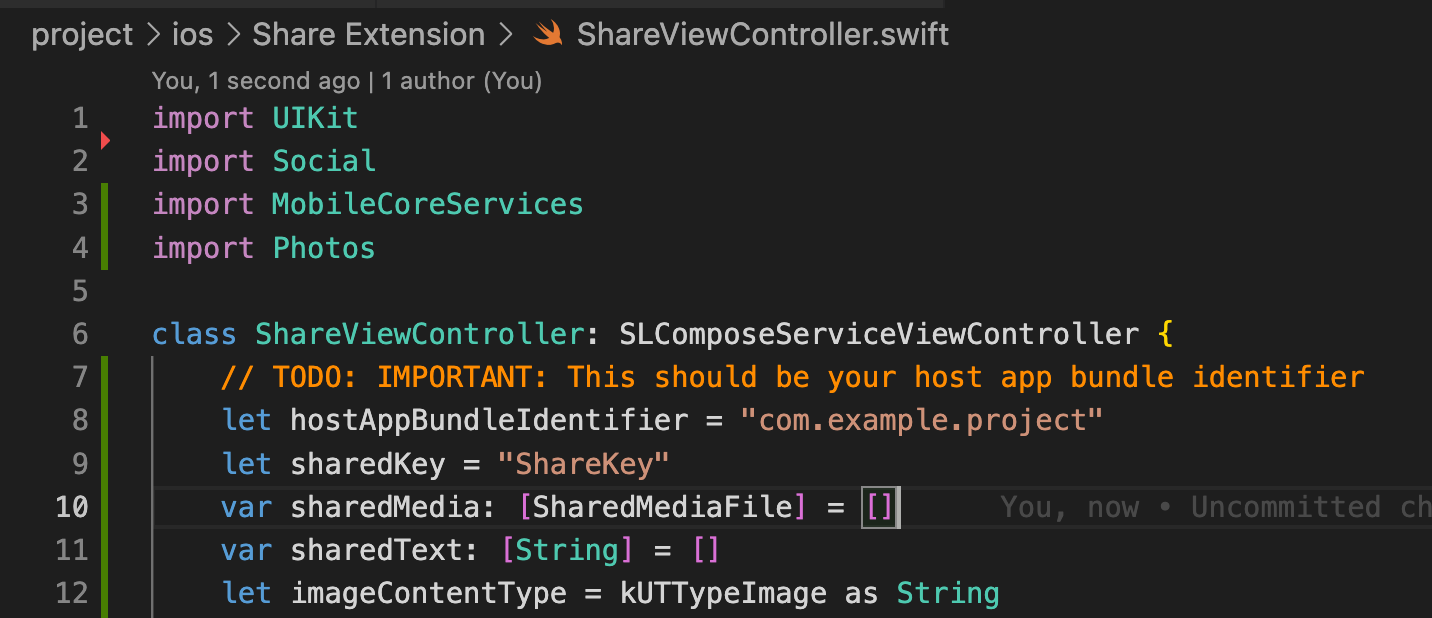

Step 7: ShareViewController.swift에 다음을 넣고 8번째 줄에 hostAppBundleIdentifier를 해당 패키지명으로 변경해주시면 됩니다.

import UIKit
import Social
import MobileCoreServices
import Photos

class ShareViewController: SLComposeServiceViewController {
    // TODO: IMPORTANT: This should be your host app bundle identifier
    let hostAppBundleIdentifier = "com.kasem.sharing"
    let sharedKey = "ShareKey"
    var sharedMedia: [SharedMediaFile] = []
    var sharedText: [String] = []
    let imageContentType = kUTTypeImage as String
    let videoContentType = kUTTypeMovie as String
    let textContentType = kUTTypeText as String
    let urlContentType = kUTTypeURL as String
    let fileURLType = kUTTypeFileURL as String;

    override func isContentValid() -> Bool {
        return true
    }

    override func viewDidLoad() {
        super.viewDidLoad();
    }

    override func viewDidAppear(_ animated: Bool) {
        super.viewDidAppear(animated)

        // This is called after the user selects Post. Do the upload of contentText and/or NSExtensionContext attachments.
        if let content = extensionContext!.inputItems[0] as? NSExtensionItem {
            if let contents = content.attachments {
                for (index, attachment) in (contents).enumerated() {
                    if attachment.hasItemConformingToTypeIdentifier(imageContentType) {
                        handleImages(content: content, attachment: attachment, index: index)
                    } else if attachment.hasItemConformingToTypeIdentifier(textContentType) {
                        handleText(content: content, attachment: attachment, index: index)
                    } else if attachment.hasItemConformingToTypeIdentifier(fileURLType) {
                        handleFiles(content: content, attachment: attachment, index: index)
                    } else if attachment.hasItemConformingToTypeIdentifier(urlContentType) {
                        handleUrl(content: content, attachment: attachment, index: index)
                    } else if attachment.hasItemConformingToTypeIdentifier(videoContentType) {
                        handleVideos(content: content, attachment: attachment, index: index)
                    }
                }
            }
        }
    }

    override func didSelectPost() {
        print("didSelectPost");
    }

    override func configurationItems() -> [Any]! {
        // To add configuration options via table cells at the bottom of the sheet, return an array of SLComposeSheetConfigurationItem here.
        return []
    }

    private func handleText (content: NSExtensionItem, attachment: NSItemProvider, index: Int) {
        attachment.loadItem(forTypeIdentifier: textContentType, options: nil) { [weak self] data, error in

            if error == nil, let item = data as? String, let this = self {

                this.sharedText.append(item)

                // If this is the last item, save imagesData in userDefaults and redirect to host app
                if index == (content.attachments?.count)! - 1 {
                    let userDefaults = UserDefaults(suiteName: "group.\(this.hostAppBundleIdentifier)")
                    userDefaults?.set(this.sharedText, forKey: this.sharedKey)
                    userDefaults?.synchronize()
                    this.redirectToHostApp(type: .text)
                }

            } else {
                self?.dismissWithError()
            }
        }
    }

    private func handleUrl (content: NSExtensionItem, attachment: NSItemProvider, index: Int) {
        attachment.loadItem(forTypeIdentifier: urlContentType, options: nil) { [weak self] data, error in

            if error == nil, let item = data as? URL, let this = self {

                this.sharedText.append(item.absoluteString)

                // If this is the last item, save imagesData in userDefaults and redirect to host app
                if index == (content.attachments?.count)! - 1 {
                    let userDefaults = UserDefaults(suiteName: "group.\(this.hostAppBundleIdentifier)")
                    userDefaults?.set(this.sharedText, forKey: this.sharedKey)
                    userDefaults?.synchronize()
                    this.redirectToHostApp(type: .text)
                }

            } else {
                self?.dismissWithError()
            }
        }
    }

    private func handleImages (content: NSExtensionItem, attachment: NSItemProvider, index: Int) {
        attachment.loadItem(forTypeIdentifier: imageContentType, options: nil) { [weak self] data, error in

            if error == nil, let url = data as? URL, let this = self {

                // Always copy
                let fileName = this.getFileName(from: url, type: .image)
                let newPath = FileManager.default
                    .containerURL(forSecurityApplicationGroupIdentifier: "group.\(this.hostAppBundleIdentifier)")!
                    .appendingPathComponent(fileName)
                let copied = this.copyFile(at: url, to: newPath)
                if(copied) {
                    this.sharedMedia.append(SharedMediaFile(path: newPath.absoluteString, thumbnail: nil, duration: nil, type: .image))
                }

                // If this is the last item, save imagesData in userDefaults and redirect to host app
                if index == (content.attachments?.count)! - 1 {
                    let userDefaults = UserDefaults(suiteName: "group.\(this.hostAppBundleIdentifier)")
                    userDefaults?.set(this.toData(data: this.sharedMedia), forKey: this.sharedKey)
                    userDefaults?.synchronize()
                    this.redirectToHostApp(type: .media)
                }

            } else {
                 self?.dismissWithError()
            }
        }
    }

    private func handleVideos (content: NSExtensionItem, attachment: NSItemProvider, index: Int) {
        attachment.loadItem(forTypeIdentifier: videoContentType, options: nil) { [weak self] data, error in

            if error == nil, let url = data as? URL, let this = self {

                // Always copy
                let fileName = this.getFileName(from: url, type: .video)
                let newPath = FileManager.default
                    .containerURL(forSecurityApplicationGroupIdentifier: "group.\(this.hostAppBundleIdentifier)")!
                    .appendingPathComponent(fileName)
                let copied = this.copyFile(at: url, to: newPath)
                if(copied) {
                    guard let sharedFile = this.getSharedMediaFile(forVideo: newPath) else {
                        return
                    }
                    this.sharedMedia.append(sharedFile)
                }

                // If this is the last item, save imagesData in userDefaults and redirect to host app
                if index == (content.attachments?.count)! - 1 {
                    let userDefaults = UserDefaults(suiteName: "group.\(this.hostAppBundleIdentifier)")
                    userDefaults?.set(this.toData(data: this.sharedMedia), forKey: this.sharedKey)
                    userDefaults?.synchronize()
                    this.redirectToHostApp(type: .media)
                }

            } else {
                 self?.dismissWithError()
            }
        }
    }

    private func handleFiles (content: NSExtensionItem, attachment: NSItemProvider, index: Int) {
        attachment.loadItem(forTypeIdentifier: fileURLType, options: nil) { [weak self] data, error in

            if error == nil, let url = data as? URL, let this = self {

                // Always copy
                let fileName = this.getFileName(from :url, type: .file)
                let newPath = FileManager.default
                    .containerURL(forSecurityApplicationGroupIdentifier: "group.\(this.hostAppBundleIdentifier)")!
                    .appendingPathComponent(fileName)
                let copied = this.copyFile(at: url, to: newPath)
                if (copied) {
                    this.sharedMedia.append(SharedMediaFile(path: newPath.absoluteString, thumbnail: nil, duration: nil, type: .file))
                }

                if index == (content.attachments?.count)! - 1 {
                    let userDefaults = UserDefaults(suiteName: "group.\(this.hostAppBundleIdentifier)")
                    userDefaults?.set(this.toData(data: this.sharedMedia), forKey: this.sharedKey)
                    userDefaults?.synchronize()
                    this.redirectToHostApp(type: .file)
                }

            } else {
                self?.dismissWithError()
            }
        }
    }

    private func dismissWithError() {
        print("[ERROR] Error loading data!")
        let alert = UIAlertController(title: "Error", message: "Error loading data", preferredStyle: .alert)

        let action = UIAlertAction(title: "Error", style: .cancel) { _ in
            self.dismiss(animated: true, completion: nil)
        }

        alert.addAction(action)
        present(alert, animated: true, completion: nil)
        extensionContext!.completeRequest(returningItems: [], completionHandler: nil)
    }

    private func redirectToHostApp(type: RedirectType) {
        let url = URL(string: "ShareMedia://dataUrl=\(sharedKey)#\(type)")
        var responder = self as UIResponder?
        let selectorOpenURL = sel_registerName("openURL:")

        while (responder != nil) {
            if (responder?.responds(to: selectorOpenURL))! {
                let _ = responder?.perform(selectorOpenURL, with: url)
            }
            responder = responder!.next
        }
        extensionContext!.completeRequest(returningItems: [], completionHandler: nil)
    }

    enum RedirectType {
        case media
        case text
        case file
    }

    func getExtension(from url: URL, type: SharedMediaType) -> String {
        let parts = url.lastPathComponent.components(separatedBy: ".")
        var ex: String? = nil
        if (parts.count > 1) {
            ex = parts.last
        }

        if (ex == nil) {
            switch type {
                case .image:
                    ex = "PNG"
                case .video:
                    ex = "MP4"
                case .file:
                    ex = "TXT"
            }
        }
        return ex ?? "Unknown"
    }

    func getFileName(from url: URL, type: SharedMediaType) -> String {
        var name = url.lastPathComponent

        if (name.isEmpty) {
            name = UUID().uuidString + "." + getExtension(from: url, type: type)
        }

        return name
    }

    func copyFile(at srcURL: URL, to dstURL: URL) -> Bool {
        do {
            if FileManager.default.fileExists(atPath: dstURL.path) {
                try FileManager.default.removeItem(at: dstURL)
            }
            try FileManager.default.copyItem(at: srcURL, to: dstURL)
        } catch (let error) {
            print("Cannot copy item at \(srcURL) to \(dstURL): \(error)")
            return false
        }
        return true
    }

    private func getSharedMediaFile(forVideo: URL) -> SharedMediaFile? {
        let asset = AVAsset(url: forVideo)
        let duration = (CMTimeGetSeconds(asset.duration) * 1000).rounded()
        let thumbnailPath = getThumbnailPath(for: forVideo)

        if FileManager.default.fileExists(atPath: thumbnailPath.path) {
            return SharedMediaFile(path: forVideo.absoluteString, thumbnail: thumbnailPath.absoluteString, duration: duration, type: .video)
        }

        var saved = false
        let assetImgGenerate = AVAssetImageGenerator(asset: asset)
        assetImgGenerate.appliesPreferredTrackTransform = true
        //        let scale = UIScreen.main.scale
        assetImgGenerate.maximumSize =  CGSize(width: 360, height: 360)
        do {
            let img = try assetImgGenerate.copyCGImage(at: CMTimeMakeWithSeconds(600, preferredTimescale: Int32(1.0)), actualTime: nil)
            try UIImage.pngData(UIImage(cgImage: img))()?.write(to: thumbnailPath)
            saved = true
        } catch {
            saved = false
        }

        return saved ? SharedMediaFile(path: forVideo.absoluteString, thumbnail: thumbnailPath.absoluteString, duration: duration, type: .video) : nil

    }

    private func getThumbnailPath(for url: URL) -> URL {
        let fileName = Data(url.lastPathComponent.utf8).base64EncodedString().replacingOccurrences(of: "==", with: "")
        let path = FileManager.default
            .containerURL(forSecurityApplicationGroupIdentifier: "group.\(hostAppBundleIdentifier)")!
            .appendingPathComponent("\(fileName).jpg")
        return path
    }

    class SharedMediaFile: Codable {
        var path: String; // can be image, video or url path. It can also be text content
        var thumbnail: String?; // video thumbnail
        var duration: Double?; // video duration in milliseconds
        var type: SharedMediaType;


        init(path: String, thumbnail: String?, duration: Double?, type: SharedMediaType) {
            self.path = path
            self.thumbnail = thumbnail
            self.duration = duration
            self.type = type
        }

        // Debug method to print out SharedMediaFile details in the console
        func toString() {
            print("[SharedMediaFile] \n\tpath: \(self.path)\n\tthumbnail: \(self.thumbnail)\n\tduration: \(self.duration)\n\ttype: \(self.type)")
        }
    }

    enum SharedMediaType: Int, Codable {
        case image
        case video
        case file
    }

    func toData(data: [SharedMediaFile]) -> Data {
        let encodedData = try? JSONEncoder().encode(data)
        return encodedData!
    }
}

extension Array {
    subscript (safe index: UInt) -> Element? {
        return Int(index) < count ? self[Int(index)] : nil
    }
}

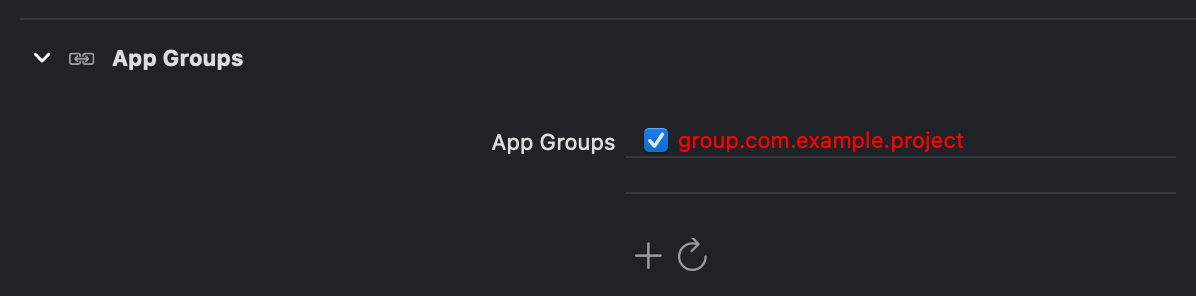

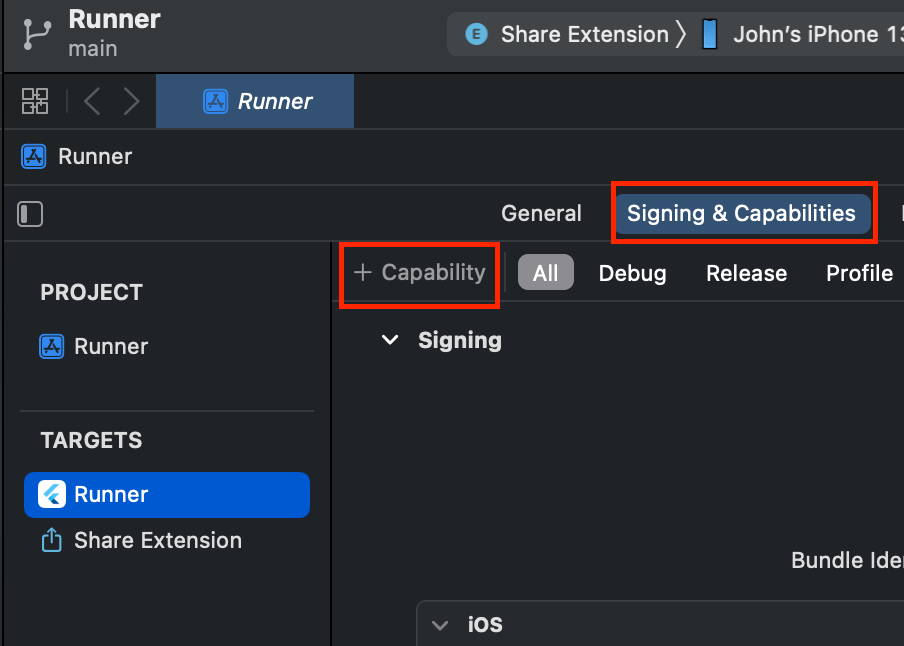

Step 8: app group를 추가합니다.



Runner, Share Extension 동일하게 해주시면 됩니다.



Step 9: 그 다음 아래 코드를 그대로 복사하여 넣어줍니다.



import 'package:flutter/material.dart';
import 'dart:async';

import 'package:receive_sharing_intent/receive_sharing_intent.dart';

void main() => runApp(MyApp());

class MyApp extends StatefulWidget {
  @override
  _MyAppState createState() => _MyAppState();
}

class _MyAppState extends State<MyApp> {
  StreamSubscription _intentDataStreamSubscription;
  List<SharedMediaFile> _sharedFiles;
  String _sharedText;

  @override
  void initState() {
    super.initState();

    // For sharing images coming from outside the app while the app is in the memory
    _intentDataStreamSubscription =
        ReceiveSharingIntent.getMediaStream().listen((List<SharedMediaFile> value) {
      setState(() {
        print("Shared:" + (_sharedFiles?.map((f)=> f.path)?.join(",") ?? ""));
        _sharedFiles = value;
      });
    }, onError: (err) {
      print("getIntentDataStream error: $err");
    });

    // For sharing images coming from outside the app while the app is closed
    ReceiveSharingIntent.getInitialMedia().then((List<SharedMediaFile> value) {
      setState(() {
        _sharedFiles = value;
      });
    });

    // For sharing or opening urls/text coming from outside the app while the app is in the memory
    _intentDataStreamSubscription =
        ReceiveSharingIntent.getTextStream().listen((String value) {
      setState(() {
        _sharedText = value;
      });
    }, onError: (err) {
      print("getLinkStream error: $err");
    });

    // For sharing or opening urls/text coming from outside the app while the app is closed
    ReceiveSharingIntent.getInitialText().then((String value) {
      setState(() {
        _sharedText = value;
      });
    });
  }

  @override
  void dispose() {
    _intentDataStreamSubscription.cancel();
    super.dispose();
  }

  @override
  Widget build(BuildContext context) {
    const textStyleBold = const TextStyle(fontWeight: FontWeight.bold);
    return MaterialApp(
      home: Scaffold(
        appBar: AppBar(
          title: const Text('Plugin example app'),
        ),
        body: Center(
          child: Column(
            children: <Widget>[
              Text("Shared files:", style: textStyleBold),
              Text(_sharedFiles?.map((f)=> f.path)?.join(",") ?? ""),
              SizedBox(height: 100),
              Text("Shared urls/text:", style: textStyleBold),
              Text(_sharedText ?? "")
            ],
          ),
        ),
      ),
    );
  }
}



Step 10: 구현해본 모습입니다. 저는 사파리 브라우저에서 flutter.dev 웹사이트를 여기로 공유해보았습니다. Shared urls에 잘 표시되는 것을 확인해볼 수 있습니다.







References:

https://pub.dev/packages/receive_sharing_intent

receive_sharing_intent | Flutter Package
